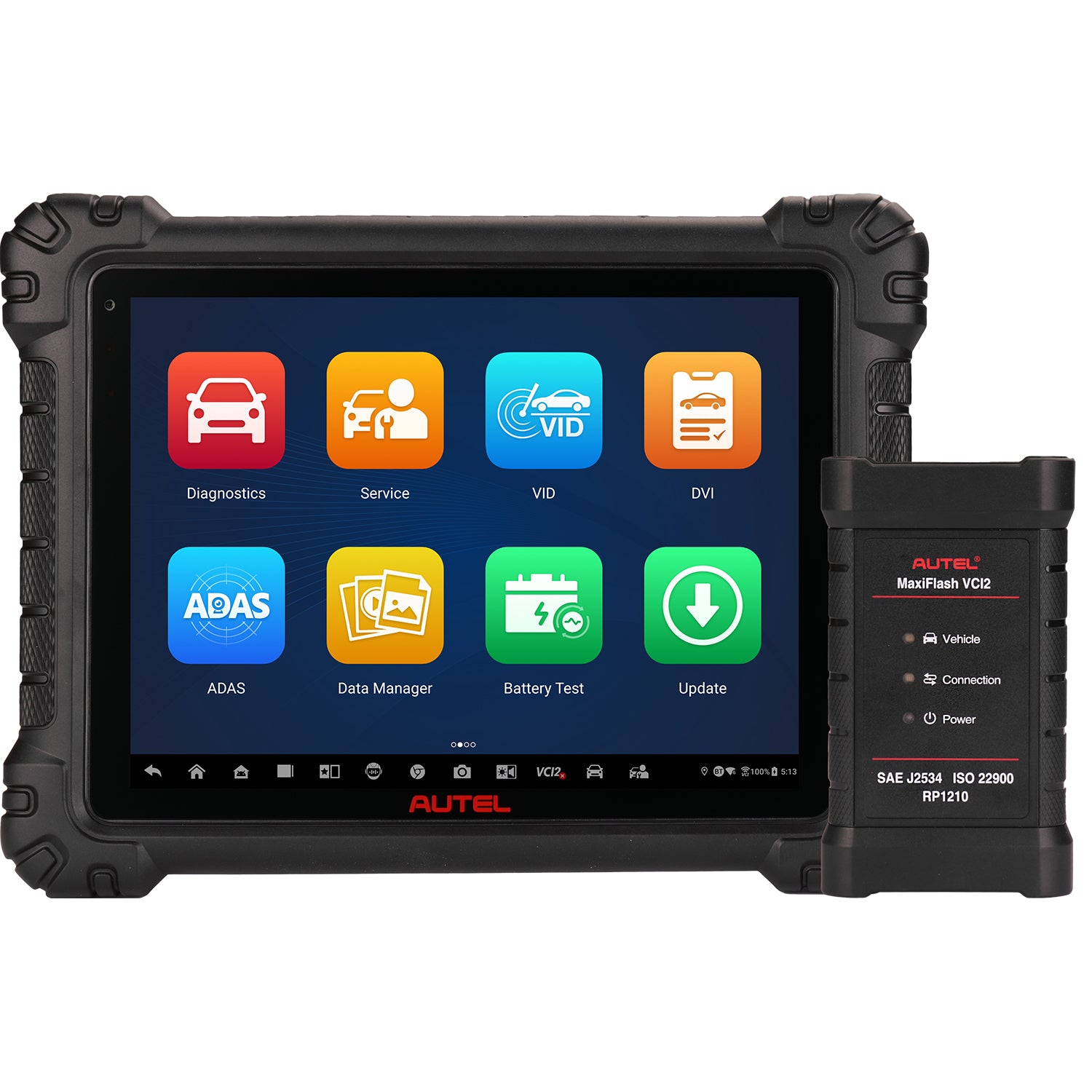

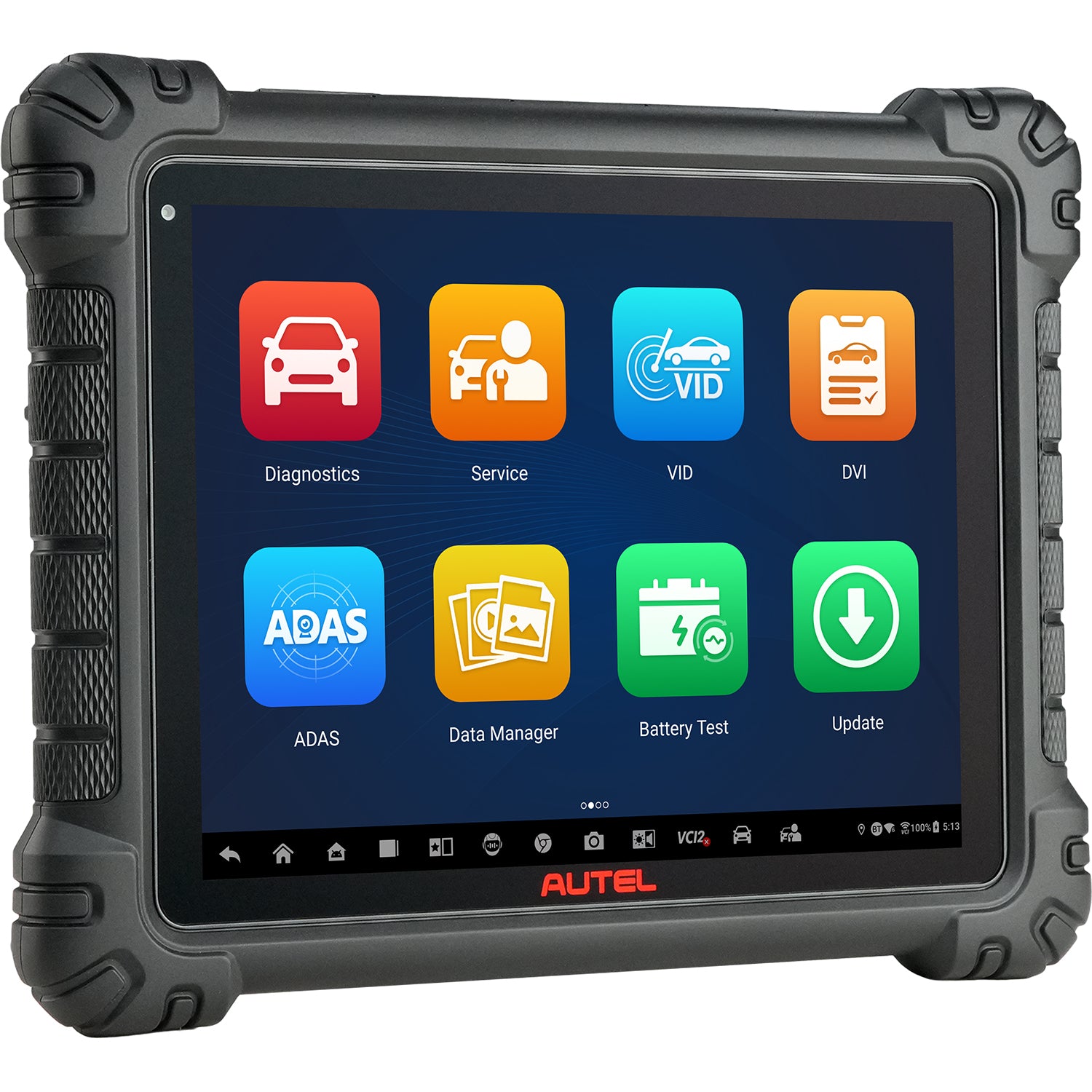

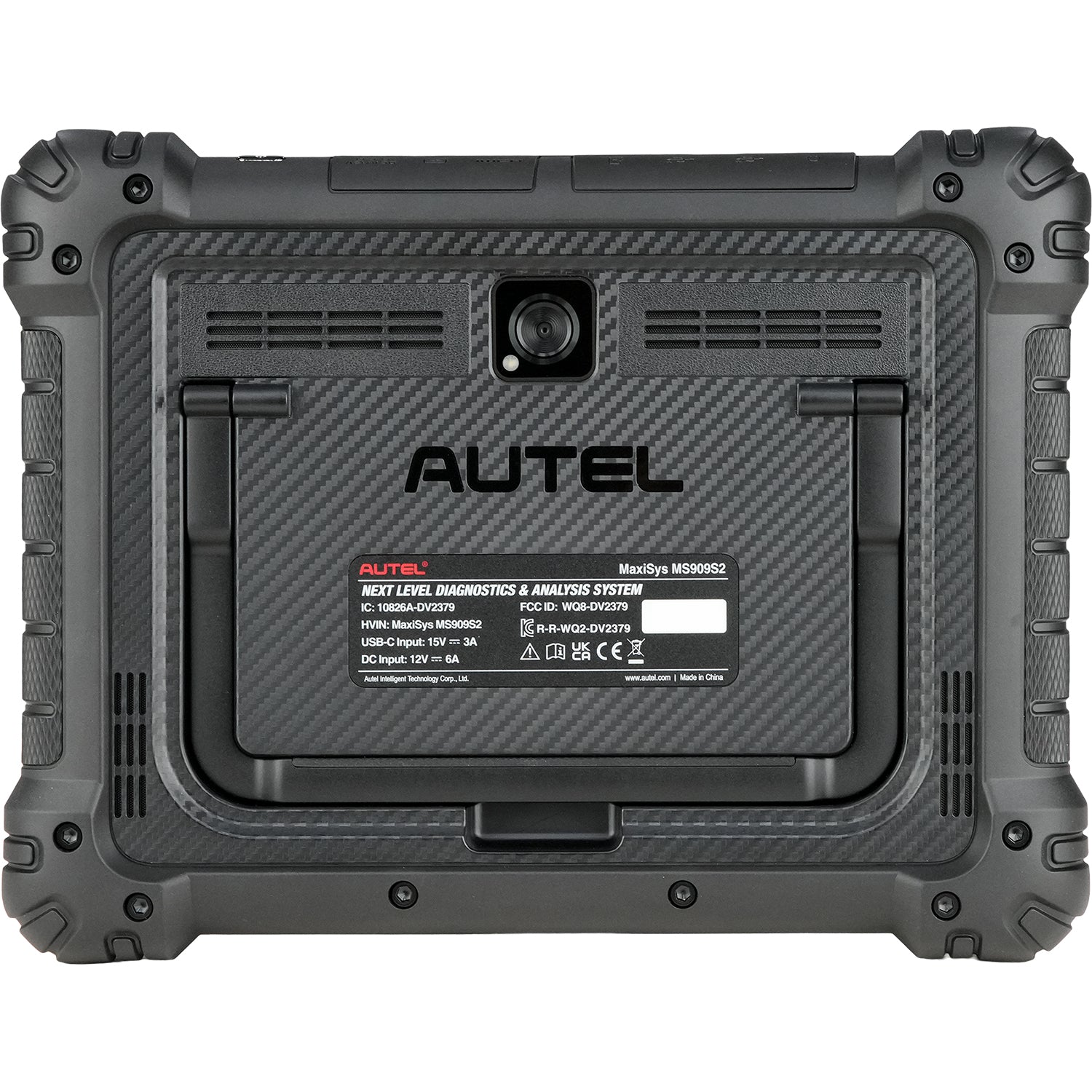

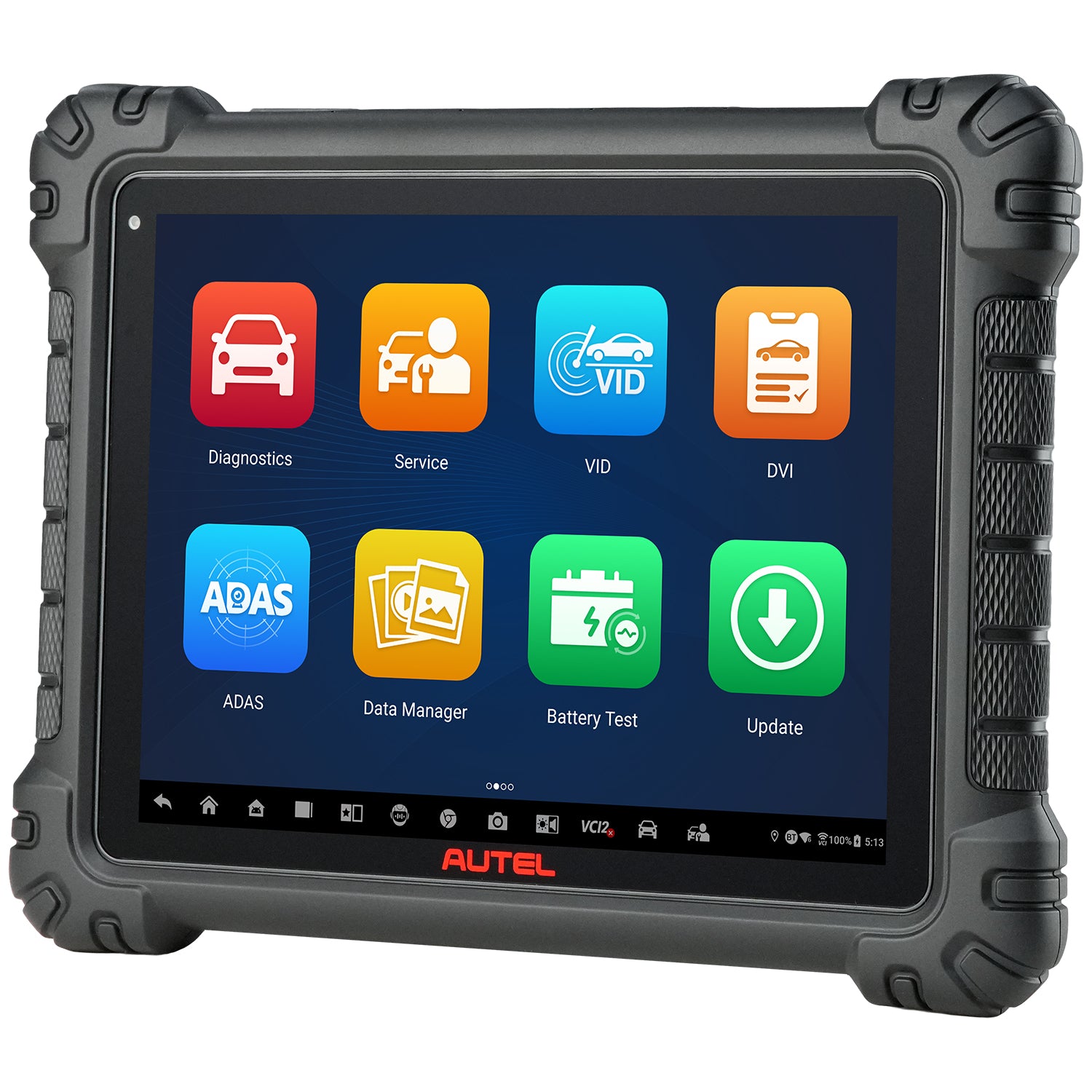

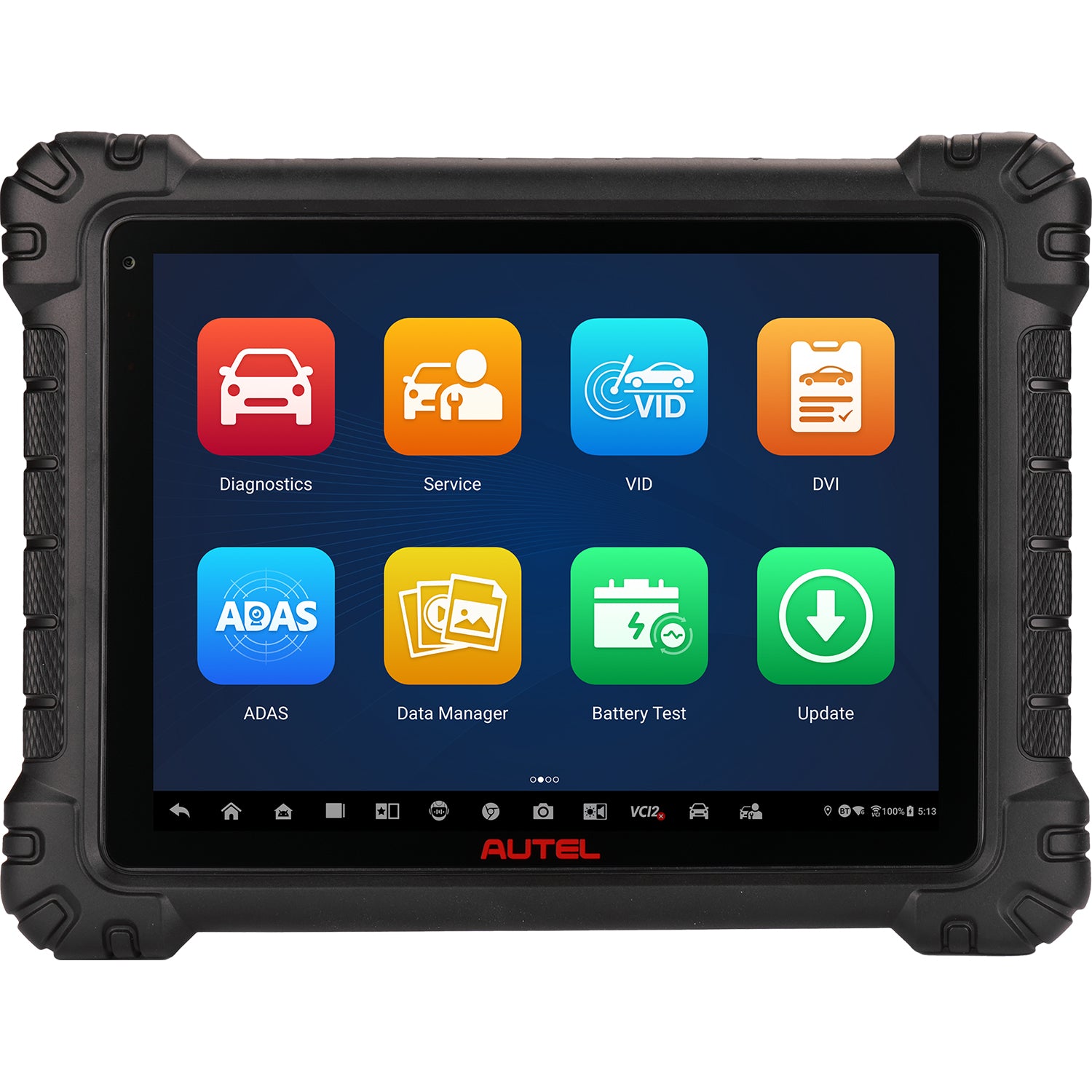

Autel MaxiSYS MS909 S2 – High‑Performance Automotive Diagnostic Tablet
Overview
The Autel MS909 S2 is an 11‑inch Android 13 diagnostic platform built for professionals demanding deep vehicle diagnostics without extraneous hardware. It provides OE-level functionality across U.S., Asian, and European makes (1996+), enhanced network diagnostics via Topology 3.0, and inclusive support for Remote Expert sessions.
Unlike more fully loaded models, the MS909 S2 omits built-in oscilloscope and multimeter, focusing instead on streamlined diagnostics and coding with a lighter, more cost-effective package.
Key Features & Functions
- Full‑System Coverage: Read/clear DTCs, bi-directional active tests, ECU coding/adaptations, hidden functions, pre/post-scan reports for all modules.
- Topology 3.0 Network Mapping: Visual ECU network map with color-coded module status and ping capability for network diagnostics.
- Data Visualization Enhancements: Multi‑PID overlays, Live Data Fusion (correlate multiple systems), Reference Sampling (min/avg/max tracking) for post-repair comparison.
- Remote Expert‑Ready: Connect with certified cloud specialists for module programming, coding, or guided diagnostics.
- Advanced Protocol Support: DoIP, CAN-FD, J2534, D-PDU, RP1210 pass-thru via MaxiFlash VCI2.
- Voice Assistant “MAX”: Hands-free control for scanning, service tasks, and menu navigation.
- 45+ One‑Tap Service Functions: Oil reset, TPMS, EPB, DPF, battery service, SAS, IMMO, etc.
- Security Gateway Support: Access for Mercedes-Benz, Nissan, VW/Audi, Stellantis via AutoAuth (VW/Audi may require in-tool subscription).
Hardware & Specifications
| Specification | MS909 S2 Detail |
|---|---|
| Display | 11" anti-glare touchscreen |
| Processor / Platform | 2.7 GHz 8‑core (S2 generation) |
| Memory & Storage | 256 GB internal storage (typical configuration) |
| Operating System | Android 13 |
| Connectivity | Dual-band Wi-Fi 6, Bluetooth, USB-C |
| Vehicle Interface | MaxiFlash VCI2 (wireless, multi-protocol) |
| Battery | High-capacity battery (e.g., 15,000 mAh typical for S2 family) |
| Cameras | Front & rear cameras (16 MP typical) |
| Warranty & Updates | 1 year limited warranty + 1 year free software updates |

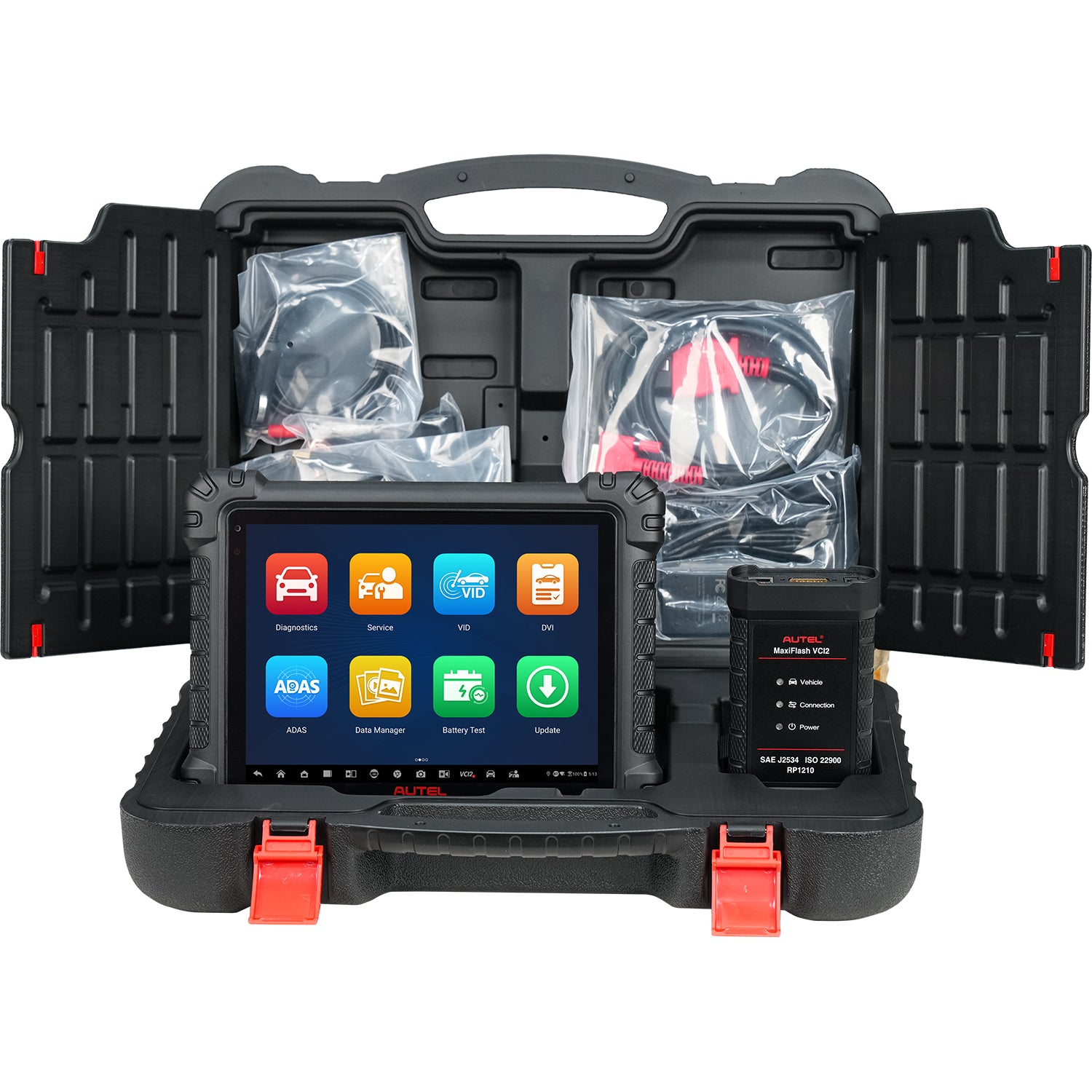

What’s in the Box
- MS909 S2 Diagnostic Tablet

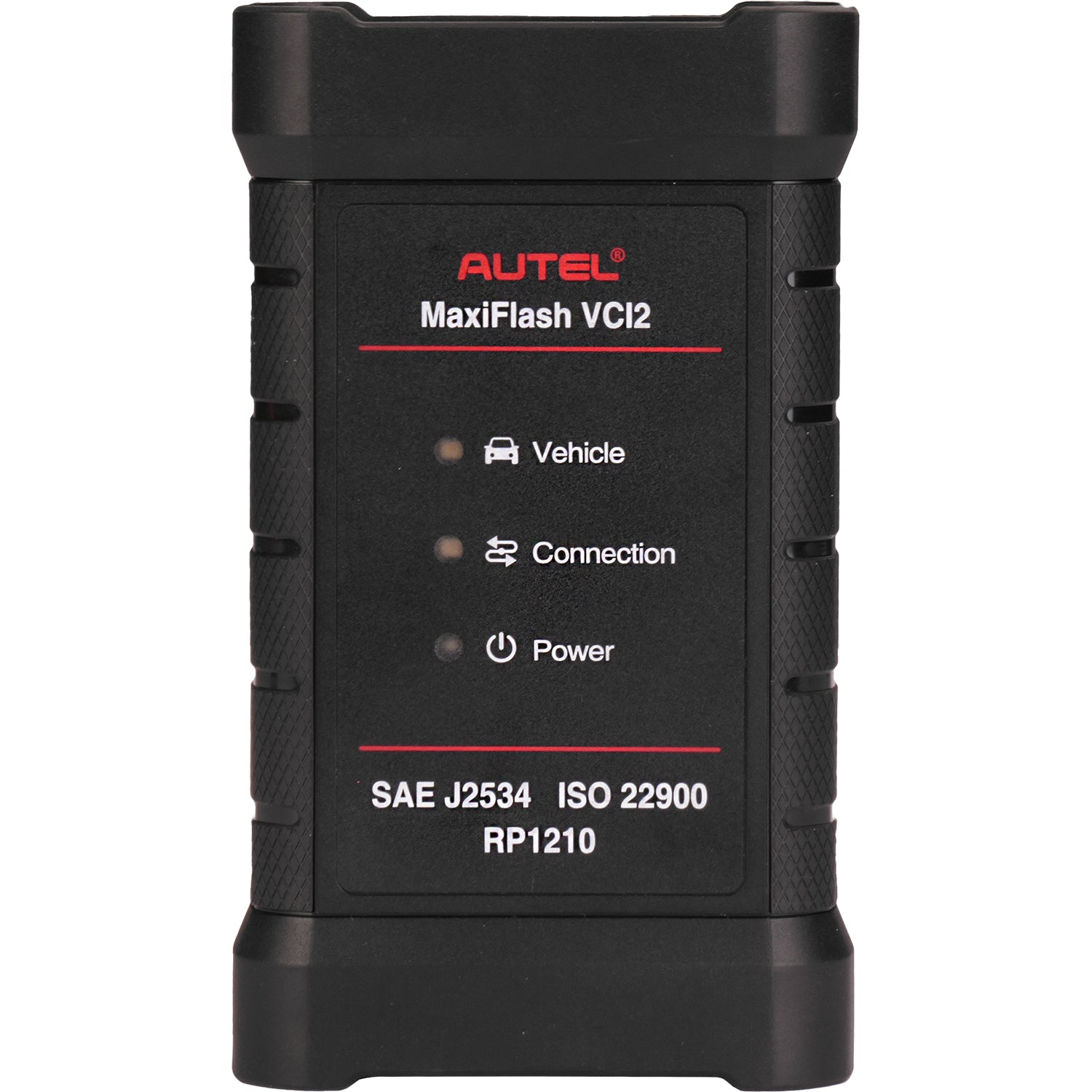

- MaxiFlash VCI2 Vehicle Interface
- OBDII Cable, USB-C Cable & Power Adapter
- Rugged Carrying Case & Quick Start Guide
- 1 Year Free Software Updates & Manufacturer Warranty
Why Choose the MS909 S2
- Delivers most of the advanced software features of higher-end models while excluding integrated scope hardware—resulting in a sleeker, more workshop-focused tool.
- Excellent for shops that already own oscilloscopes or multimeters and prefer reduced weight and cost.
- Remote Expert capability unlocks advanced programming features on-demand without needing full access locally.
- Strong data tools and protocol coverage make it highly capable across modern vehicle systems.
Important Notes & Add-ons
- Does not include integrated oscilloscope, multimeter, or waveform generator. Use external tools (or upgrade to MS919 S2) when signal analysis is needed.
- ADAS calibration, EV diagnostics, or other specialty modules may require additional license or hardware.
- Remote Expert requires stable internet and may carry additional service fees.
- VW/Audi gateway access may require in-tool token purchase/AutoAuth subscription.
